What size should a floor drain be?

Have you ever experienced water pooling on your bathroom floor after a shower, or watched helplessly as your basement flooded because the drain couldn't handle the overflow? Selecting the wrong floor drain size is a common mistake that leads to water damage, costly repairs, and safety hazards. Understanding proper floor drain sizing is critical for residential and commercial applications alike. The answer depends on several factors including building codes, application type, and drainage requirements. For most installations, a minimum 2-inch diameter outlet is required by code, though many professionals recommend 4-inch drains for optimal performance. When choosing the right solution, a Brushed Stainless Steel Floor Drain offers both code compliance and superior functionality, ensuring your space stays dry and safe.

Understanding Floor Drain Size Requirements and Building Codes

Proper floor drain sizing begins with understanding regulatory requirements and industry standards. Building codes exist to ensure safety, functionality, and longevity of plumbing systems across all types of structures. According to national plumbing codes, floor drains must have a minimum drain outlet diameter of 2 inches (50 millimeters) for standard residential and commercial applications. However, this minimum requirement represents just the baseline for code compliance rather than an optimal solution for every situation. The International Plumbing Code and Uniform Plumbing Code both establish these minimum standards, but local jurisdictions may impose additional requirements. For instance, floor drains installed below basement floors or in underground locations often require a minimum 3-inch diameter to handle potential groundwater infiltration and prevent backup issues. In specialized facilities such as commercial kitchens, food processing plants, and industrial settings, building codes mandate even larger drain sizes, typically 4 inches in diameter, to accommodate higher flow rates and facilitate easier maintenance and cleaning. When selecting a Brushed Stainless Steel Floor Drain for your project, consider that code compliance is only the starting point. The actual size needed depends on the anticipated water volume, the number of fixtures draining into the system, and the slope of the surrounding floor. Professional plumbers often size drains one or two inches larger than the minimum requirement to provide a safety margin and ensure efficient drainage under peak flow conditions. This approach prevents overflow situations and extends the service life of the drainage system by reducing strain on pipes and preventing premature wear.

• Standard Floor Drain Dimensions for Different Applications

Floor drain sizing varies significantly based on the intended application and environment. Residential applications typically use drains ranging from 2 to 4 inches in diameter, with the most common size being 2 inches for basement utility drains and 3 to 4 inches for shower and bathroom installations. These residential Brushed Stainless Steel Floor Drain units must balance drainage capacity with aesthetic considerations, as they're often visible in finished living spaces. Commercial and industrial settings demand more robust drainage solutions. Restaurant kitchens, hospital laundry facilities, and manufacturing plants commonly install 4 to 6-inch floor drains to handle large volumes of water and withstand constant use. These larger drains also facilitate easier cleaning and maintenance, which is crucial in commercial environments where downtime costs money. The grate size typically corresponds to the drain outlet size, though it may be slightly larger to provide adequate surface area for water collection. A 4-inch drain might have a 6-inch square or round grate, while a 6-inch drain could feature an 8 to 10-inch grate. Specialized applications require custom sizing considerations. Swimming pool deck drains, for example, need to handle sudden influxes of water from multiple swimmers exiting simultaneously. These installations often feature multiple 4 to 6-inch Brushed Stainless Steel Floor Drain units strategically positioned around the pool perimeter. Similarly, commercial vehicle wash facilities might install trench drains with 6 to 12-inch widths and lengths extending several feet to capture runoff from entire vehicle bays. The key principle remains consistent across all applications: the drain must be sized to handle peak flow rates without allowing water to pool on the surface.

Factors That Determine the Correct Floor Drain Size

• Flow Rate Calculation and Drainage Capacity

Determining the appropriate floor drain size requires careful analysis of expected flow rates and drainage capacity. Flow rate, measured in gallons per minute (GPM) or liters per minute (LPM), represents the volume of water that must be evacuated from the floor surface during peak usage. This calculation must account for all potential water sources including fixtures, equipment, cleaning operations, and emergency situations like pipe bursts or appliance failures. Professional engineers use hydraulic formulas to calculate required drain capacity based on the tributary area, which is the total floor space that drains toward a single drain location. For example, a residential bathroom with a shower, toilet, and sink might generate peak flows of 15 to 20 GPM during simultaneous use. A standard 2-inch Brushed Stainless Steel Floor Drain can typically handle 20 to 30 liters per minute under normal head pressure, making it adequate for this application. However, commercial shower facilities with multiple shower heads operating simultaneously would require larger drains or multiple drain points to prevent flooding. The drainage capacity of a floor drain is influenced by several physical factors beyond just the pipe diameter. The grate design, which includes the total open area and hole pattern, significantly impacts how quickly water can enter the drain. A grate with smaller, more numerous holes may look more refined but could restrict flow compared to a grate with larger openings. The depth and design of the trap also affect drainage performance. Deep seal traps, which are required in areas where the trap may dry out, add resistance to flow but prevent sewer gases from entering the building. When specifying a Brushed Stainless Steel Floor Drain, ensure that the combination of grate open area, pipe diameter, and trap design provides adequate capacity for your specific application.

• Installation Location and Environmental Considerations

The location where a floor drain will be installed dramatically impacts the appropriate size selection. Indoor drains in climate-controlled spaces face different challenges than outdoor drains exposed to weather, debris, and temperature extremes. Interior drains in residential basements near water heaters or washing machines typically require 2 to 3-inch diameters, as they handle relatively clean water in controlled volumes. These locations benefit from Brushed Stainless Steel Floor Drain units with fine mesh strainers that catch small particles while allowing efficient drainage. Outdoor applications demand more robust sizing and construction. Patio drains, garage floor drains, and parking structure drains must handle not only intentional water discharge but also rainwater runoff, which can occur in sudden, high-volume bursts during storms. These locations typically require 4 to 6-inch drains with heavy-duty grates rated for vehicular traffic if cars or trucks will pass over them. The grate design must also prevent debris accumulation while allowing adequate flow. Larger grate openings work well for outdoor drains but must still comply with safety standards that prevent injuries from people stepping on them. Environmental factors like freeze-thaw cycles, chemical exposure, and sediment load also influence drain sizing decisions. Drains in commercial kitchens must resist grease and food particles, which can reduce effective diameter over time. Industrial facilities with chemical processes need drains sized to handle emergency spills, which might involve hundreds of gallons released suddenly. Cold climate installations require consideration of potential ice formation, which can restrict flow through both the grate and the pipe. In all these scenarios, choosing a properly sized Brushed Stainless Steel Floor Drain with appropriate corrosion resistance ensures long-term performance. The 304 stainless steel construction offers excellent resistance to rust and chemical attack, maintaining full drainage capacity throughout the product's service life.

Selecting the Right Brushed Stainless Steel Floor Drain for Your Project

• Material Quality and Construction Features

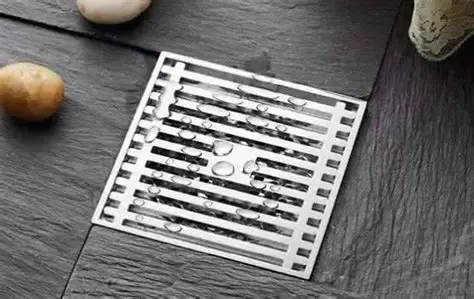

The material composition and construction methodology of a floor drain directly impact its performance, longevity, and maintenance requirements. Premium Brushed Stainless Steel Floor Drain units manufactured from 304 stainless steel provide superior corrosion resistance compared to cast iron or plastic alternatives. This grade of stainless steel contains chromium and nickel alloys that form a passive protective layer, preventing rust even in wet environments with exposure to cleaning chemicals and harsh conditions. The thickened design ensures structural integrity under load-bearing conditions, whether from foot traffic in residential bathrooms or vehicle traffic in commercial garages. One-piece molding construction eliminates weak joints and seams where leaks commonly develop in multi-piece drain assemblies. This manufacturing approach creates a seamless body that channels water efficiently from the grate surface through the trap and into the drainage pipe. The triple odor prevention system incorporated into quality Brushed Stainless Steel Floor Drain designs includes the water seal trap, a gravity closing mechanism, and gasketed connections that create multiple barriers against sewer gas infiltration. This comprehensive odor control is essential in occupied spaces where unpleasant smells would create discomfort and potentially indicate hygiene issues. The surface finish of the drain components serves both functional and aesthetic purposes. A brushed finish on stainless steel provides an attractive appearance that complements modern interior design while offering practical benefits. The brushed texture helps conceal minor scratches and water spots that would be obvious on polished surfaces, reducing the appearance of wear and minimizing maintenance requirements. This finish also provides subtle slip resistance on the grate surface, improving safety in wet areas. When evaluating Brushed Stainless Steel Floor Drain options, examine the consistency and quality of the brushed finish, ensuring it extends across all visible surfaces for a professional appearance that maintains its beauty over years of service.

• Drainage Performance and Anti-Clog Technology

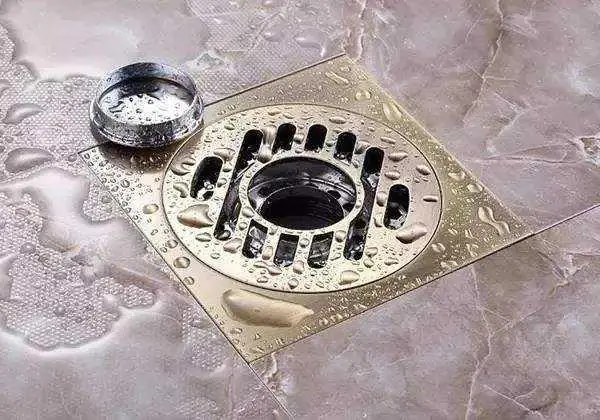

Effective drainage requires more than just adequate pipe diameter; it demands thoughtful engineering of the entire drain assembly. Modern Brushed Stainless Steel Floor Drain systems incorporate multiple design features that enhance flow performance and prevent common drainage problems. Left and right double water outlets, found in premium drain models, accelerate drainage by providing two exit paths for water instead of forcing all flow through a single central outlet. This configuration is particularly beneficial in high-volume applications where rapid water removal prevents surface pooling and slip hazards. Hair and debris accumulation represents one of the most common causes of drain clogging, especially in bathroom and shower applications. Built-in honeycomb hair filters address this challenge by intercepting hair and larger particles before they enter the drainage pipe where they could combine with soap scum and other materials to form stubborn blockages. These filters feature carefully sized openings that balance debris capture with flow resistance. The honeycomb pattern distributes water flow across the entire filter surface, preventing any single section from becoming overwhelmed during peak usage. Importantly, these filters must be removable for easy cleaning, as their effectiveness diminishes when they become loaded with captured material. The gravity closing design in quality Brushed Stainless Steel Floor Drain assemblies provides automatic sealing that prevents sewage overflow and isolates odors without requiring manual operation. When water flows through the drain, the force of the drainage opens the closure mechanism, allowing unimpeded passage. Once flow stops, gravity causes the closure element to return to its sealed position, creating a tight barrier. This mechanical simplicity ensures reliable operation without springs or other components that might corrode or fail over time. The seal must be maintained clean to function properly, which is why drain maintenance schedules should include periodic inspection and cleaning of all sealing surfaces.

• Size Selection Guide for Common Applications

Choosing the correct Brushed Stainless Steel Floor Drain size requires matching the drain specifications to your specific application requirements. For residential bathrooms and laundry rooms, 4-inch by 4-inch square drains with 2-inch outlet pipes represent the minimum acceptable size, though many professionals recommend 6-inch by 6-inch grates with 3-inch outlets for improved performance and future-proofing. These dimensions provide adequate drainage for typical residential water flows while fitting within standard floor construction depths. The compact size allows installation in tight spaces without requiring extensive floor modification. Commercial kitchens and food service areas demand more substantial drainage capacity due to higher water volumes from dishwashing operations, equipment cleaning, and periodic floor washing. These applications typically require 6-inch by 6-inch to 8-inch by 8-inch Brushed Stainless Steel Floor Drain units with 3 to 4-inch outlet connections. The larger grate area captures water from a wider zone, reducing the number of drains needed to cover the entire floor space. This is economically beneficial as it reduces installation labor and material costs while simplifying the drainage system layout. The stainless steel construction is particularly important in kitchen environments where the drain will be exposed to hot water, grease, cleaning chemicals, and frequent impact from dropped utensils and equipment. Industrial facilities, vehicle wash bays, and swimming pool mechanical rooms require the largest drain sizes to handle substantial water volumes and withstand heavy-duty use conditions. Eight-inch by eight-inch grates with 4 to 6-inch outlet pipes provide the flow capacity needed for these demanding applications. Some industrial installations utilize trench drains instead of point drains, featuring long rectangular grates that capture water along their entire length. These might measure 6 to 12 inches wide and extend several feet, effectively creating a linear drainage barrier. When sizing Brushed Stainless Steel Floor Drain systems for industrial use, consider not only normal operational flows but also emergency scenarios like fire suppression system discharge or process equipment failures that could release large water volumes suddenly.

Installation Considerations and Best Practices

• Proper Installation Depth and Slope Requirements

Successful floor drain installation extends far beyond simply placing the drain in the floor. The installation depth must accommodate the drain body, trap assembly, and connection to the building drainage system while maintaining proper floor surface elevation. Typical Brushed Stainless Steel Floor Drain assemblies require 12 to 14 centimeters of depth from the finished floor surface to the bottom of the trap, though this varies based on the specific model and trap design. Shallow profile drains are available for retrofit situations where floor depth is limited, but these may sacrifice trap seal depth, which could lead to more frequent trap primer operation or seal evaporation in low-use areas. The floor slope surrounding the drain significantly impacts drainage effectiveness. Building codes typically require a minimum slope of 1/4 inch per foot (approximately 2 percent grade) directed toward the drain location. This slope ensures that water naturally flows to the drain rather than pooling on the floor surface. In large floor areas, the slope might be steeper near the drain and gradually flatten as distance increases, creating a basin-like profile. The transition must be smooth to prevent trip hazards while maintaining effective drainage. When installing a Brushed Stainless Steel Floor Drain in a tiled floor, the slope should be built into the mortar bed, with tiles cut and set to follow the contour. Proper connection to the building drainage system requires careful attention to pipe sizing, venting, and trap requirements. The drain outlet must connect to a branch drain line sized to handle the combined flow from all connected fixtures and drains. The connection should include a cleanout access point within a reasonable distance, allowing blockages to be cleared without removing the drain assembly. Venting is critical for proper drain operation, as it allows air to enter the system behind draining water, preventing the formation of vacuum that would slow drainage and potentially pull water out of traps. Local building codes specify minimum vent sizes based on drain diameter and distance to the vent stack. For a 2-inch Brushed Stainless Steel Floor Drain, the minimum vent diameter is typically 1.5 inches, while larger drains require proportionally larger vents.

• Maintenance Requirements and Long-Term Performance

Maintaining optimal Brushed Stainless Steel Floor Drain performance requires regular inspection and cleaning procedures. The visible grate and strainer should be removed and cleaned weekly in high-use commercial applications, or monthly in residential settings. This simple maintenance prevents debris accumulation that gradually restricts flow and can lead to complete blockages if ignored. Cleaning involves removing the grate, extracting any accumulated hair and debris from the strainer, and flushing the visible portion of the drain with hot water. In commercial kitchens, degreasing agents may be necessary to dissolve accumulated fats and oils that can coat drain surfaces. The trap seal requires periodic checking to ensure adequate water depth prevents sewer gas infiltration. Traps can lose their seal through evaporation in infrequently used drains, particularly in heated spaces or dry climates. Some building codes require automatic trap primers in floor drains that don't receive regular use. These devices automatically add small amounts of water to the trap whenever other plumbing fixtures in the building are used, maintaining the seal without manual intervention. Alternatively, pouring a gallon of water down the drain monthly will maintain the trap seal in low-use locations. The deep seal traps incorporated into quality Brushed Stainless Steel Floor Drain designs hold more water and resist evaporation longer than shallow traps, reducing maintenance frequency. Long-term performance of stainless steel drains remains excellent provided the proper grade of stainless steel was used in construction and the drain receives reasonable maintenance. The 304 stainless steel composition provides decades of service life without significant corrosion, even in challenging environments with exposure to cleaning chemicals and constant moisture. Unlike cast iron drains that gradually rust and develop rough interior surfaces that catch debris, or plastic drains that can crack under thermal stress or impact, Brushed Stainless Steel Floor Drain assemblies maintain their smooth interior finish and structural integrity throughout their service life. This durability translates to lower total ownership costs, as the drain won't require replacement due to corrosion or structural failure. The only components that may need periodic replacement are rubber gaskets and sealing elements, which are inexpensive and easily changed during routine maintenance.

Conclusion

Selecting the appropriate floor drain size is fundamental to creating functional, code-compliant drainage systems that prevent water damage and ensure safety. Whether you need a residential drain for your bathroom or a heavy-duty commercial installation, understanding sizing principles and building codes guides you to the right solution. Quality Brushed Stainless Steel Floor Drain products offer durability, performance, and aesthetic appeal that meet modern standards while providing decades of reliable service.
